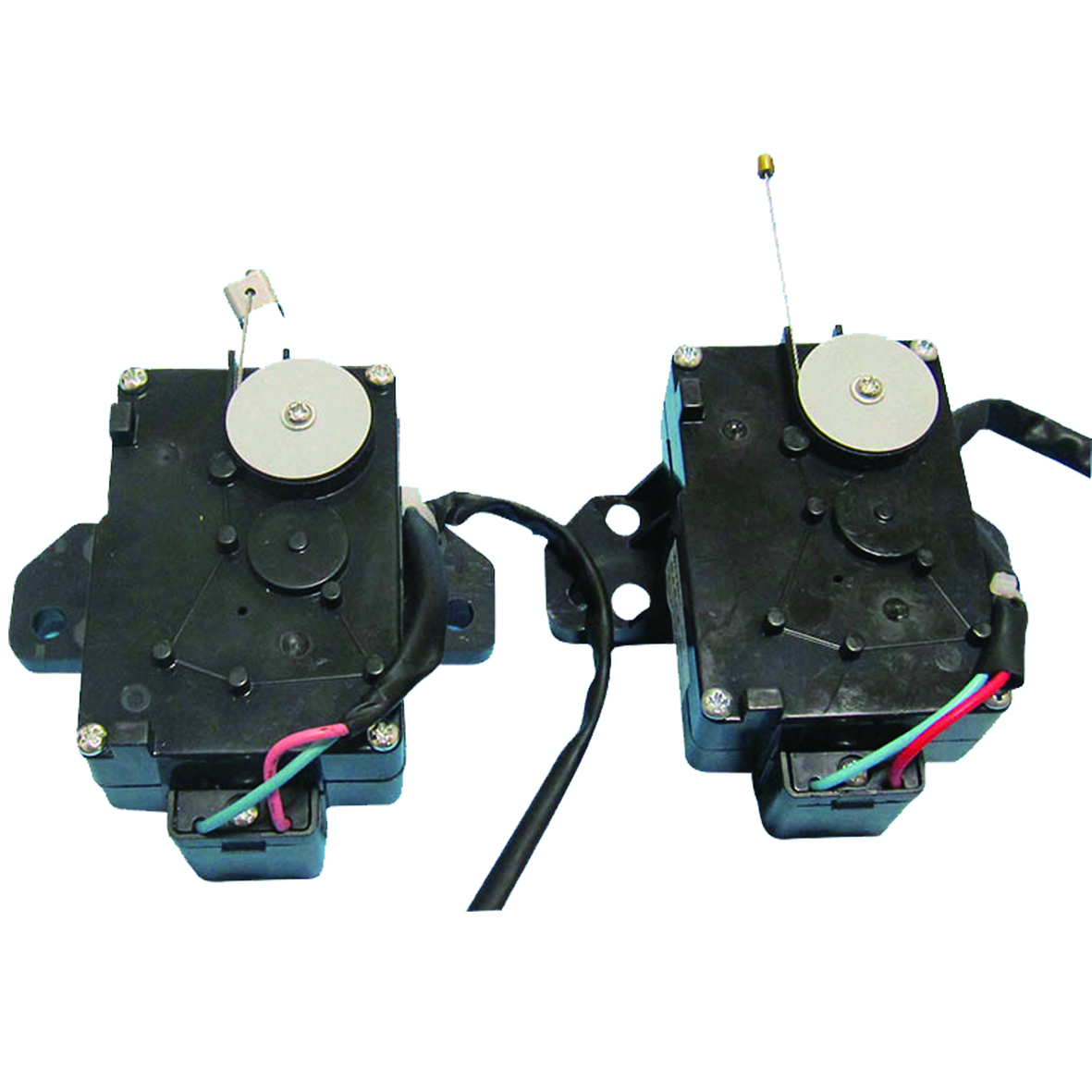

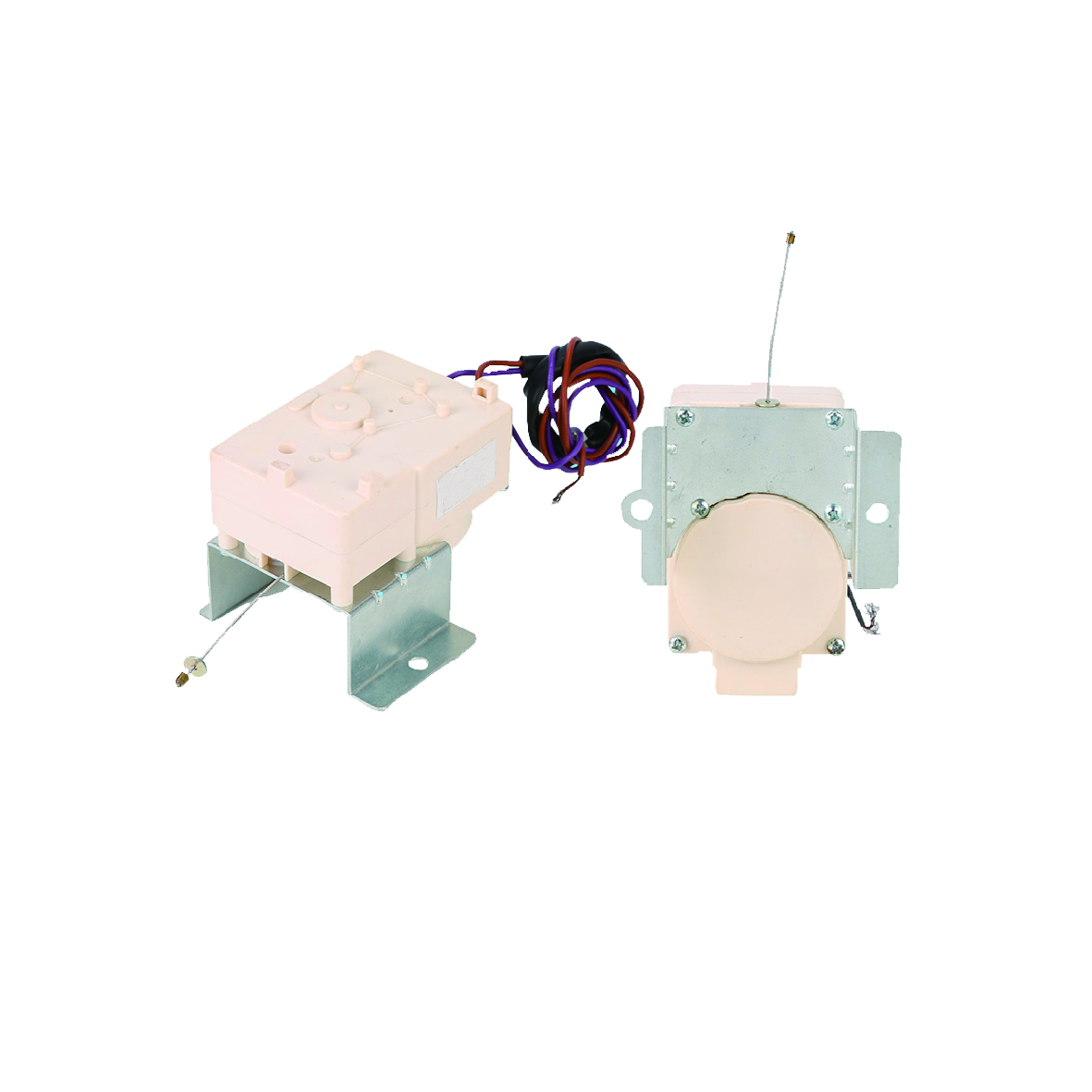

707X Series Drain Motor
Mechanical-single trip
Installation distance between two holes：75±0.3mm;
Hole spacing for positioning：74.5mm;
Length of exposed steel wire：36.5±0.5mm.
Installation distance between two holes：75±0.3mm;
Hole spacing for positioning：74.5mm;
Length of exposed steel wire：36.5±0.5mm.
1、Rated voltage：220V or 110V;
2、Rated frequency：50~60HZ;
3、Distance of working trip：23±1;
4、working life > 50，000 times;
5、Traction≥80N;
6、Reset Force≤10N.
